VIBRATION ANALYZER – ARGUS

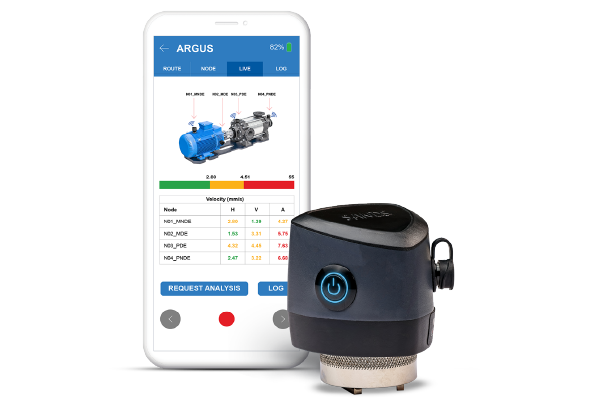

ARGUS Tri-axial wireless vibration analyzer brings a new dimension to the world of predictive maintenance to easily diagnose the health of motors and any connected driven assets like pumps, fans, compressors, etc. It enables easy condition monitoring of rotary machines and detects faults well before equipment failure. ARGUS reduces maintenance costs and increases asset lifespan.

ENQUIRE

SPECIFICATIONS

APPLICATIONS

RESOURCES

EASY TO INSTALL

TROUBLE-FREE DATA COLLECTION

DEDICATED ANDROID APP

INSIGHTFUL WEB APPLICATION

LONG-LASTING BATTERY

PROMINENT PERFORMANCE

DEPLOYABLE IN HAZARDOUS AREAS

TOP-NOTCH SUPPORT

SPECIFICATIONS
Frequency range	2HZ to10kHz
Amplitude range & settings	±16g; 2g/4g/8g/16g
Sampling Frequency (Data capture-axis)	26 kHz
Accuracy	±1%
Measurements	3-axis acceleration, Velocity & Displacement - Overall RMS. TWF & FFT spectrumsc
Window functions	Rectangular, Hanning and Flat top
Operating temperature range	Upto 120°C

Communication	Local - Bluetooth
Data collection	Mobile app - Quick Collect & Route Based Collect
Data availbaility	Local-Mobile & Remote-Dashboard
Power Source	Rech.Li-Polymer (10 hrs)
Sensor controls and indicators	1 Power indicator 2. Power input 3. Power on/off button
Weight	250g
Dimensions(HxDxW)	2.9x2.3x2.2 in (174 x 59 x 58 mm)

ARGUS can detect

Misalignment
Imbalance
Mechanical Loosenes
Bearing Defects
Gear mesh
Cavitiation

Catalog

To download Online Analyzer Brochure

To download Portable Analyzer Brochure

Case Study

Automotive – High-Speed Spindle

Power Plant / ID & FD Fans

Chiller Plant / Centrifugal Pumps & AHU

Petro Chemical Plant / Blower & Centrifuge

TESTIMONIAL

Hear what our happy customers have to say about our product & service.

Everest Industries

SANDS Argus helped us a lot in maintaining our equipment health. A detailed report consisting of vibration data, possible faults & suitable recommendations was given by the Sands experts. Based on the report, we rectified the faults in our equipment, significantly increased our machine uptime and reduced maintenance cost.

L&T Eden Park

With the help of the Argus sensor, we were able to minimize the vibration level of our blowers and also reduced annual maintenance cost and electricity consumption by 30%.

ARGUS DECREASED OUR MAINTENANCE COST

ARGUS has been deployed in our plant for around a year and we are monitoring the vibration trend and health of around 30 spindles. ARGUS provides route-based data acquisition, historical trending, AI&ML machine health status and bearing anomaly detections, resulting in decreased plant maintenance costs.

DELPHI-TVS TECHNOLOGIES

❮ ❯
