Portable Power Quality Analyzer - PQS-1001

The Portable Power Quality Analyzer - PQS-1001 from SANDS is an indigenously developed connected solution for intelligent power quality monitoring. It combines a rugged measurement unit with a wireless tablet and cloud dashboard, enabling safe, efficient, and paperless audits. Designed for Class S compliance (IEC 61000-4-30), it measures voltage, current, harmonics, flicker, and inrush events. With flexible CT inputs up to 3000 A and cloud-based reporting, the PQS-1001 streamlines power quality analysis for industries, utilities, and renewable systems.

ENQUIRE

submitting...

Overview

Key Features

Technical Specifications

Modules

Resources

Overview

The Portable Power Quality Analyzer - PQS-1001 is engineered for professionals who need reliable, repeatable, and connected power quality measurements in the field. Designed to simplify complex audits, it combines a high-accuracy Class S measurement platform with wireless tablet operation and cloud-based reporting to deliver complete visibility into electrical system performance.

Accurate, Connected, and Ready for the Field

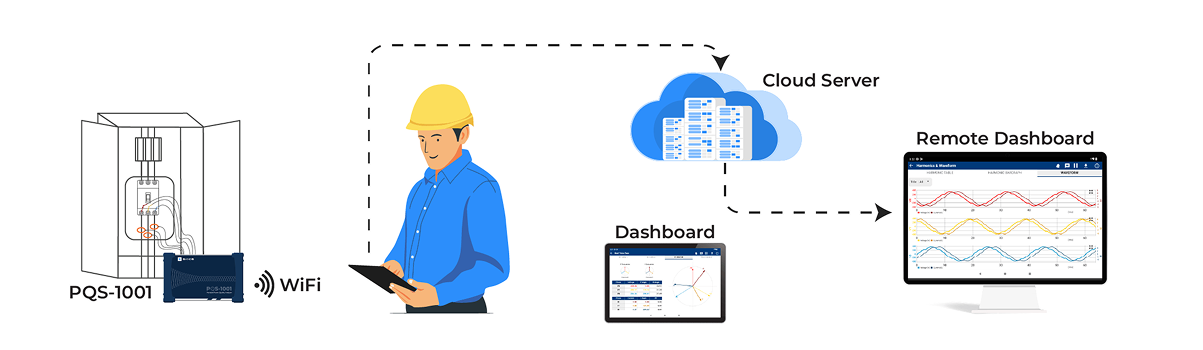

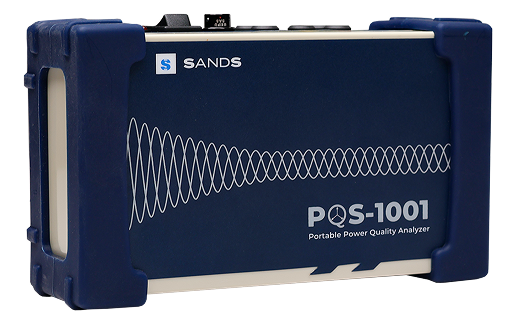

Built for real-world environments, the PQS-1001 pairs a rugged main unit with a Wi-Fi-enabled tablet interface that provides remote control and data visualisation. Engineers can safely perform measurements without direct panel contact, while all captured data is automatically synchronized to a secure cloud dashboard for analysis, reporting, and record-keeping.

Comprehensive Power Quality Analysis

Conforming to IEC 61000-4-30 Class S, the PQS-1001 captures all key parameters essential for diagnosing system health and performance. It measures:

Voltage and current up to 1000 V / 3000 A
Harmonics up to the 51st order
Flicker, dips, swells, and transients
Power factor, active/reactive power, and energy values
Inrush current and waveform oscillography

These measurements help identify voltage disturbances, waveform distortions, and harmonic imbalances that affect power reliability and equipment efficiency.

Flexible Current Measurement

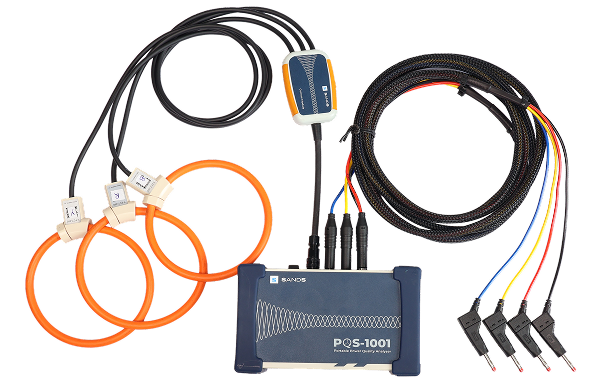

The PQS-1001 supports both Clamp and Rogowski current transformers, allowing current measurement from 10 A to 3000 A across diverse applications. The universal CT interface enables easy adaptation to plant, utility, and renewable energy systems without additional setup.

Safe and Efficient Operation

Every measurement is controlled through the wireless tablet application, keeping the operator safely away from live panels. The interface offers guided workflows, photo-tagging, and route-based asset management to ensure consistent and traceable measurements across multiple locations.

From Measurement to Insight

With cloud connectivity, automated Excel/PDF reports, and historical trend analysis, the PQS-1001 enables users to transition seamlessly from field measurement to actionable insights. It’s a complete, connected solution for professionals who demand accuracy, safety, and reliability in every power quality study.

Applications

Renewable Energy

Validate inverter output and assess grid synchronization performance.

Industrial Facilities

Analyze harmonics, power factor, and unbalance in motors and HVAC systems

Utilities

Support compliance testing, PQ audits, and field investigations.

Energy Management

Identify and quantify energy losses due to poor power quality.

Measurement Performance
Standards Compliance	IEC 61000-4-30 Class S
Frequency Range	45–65 Hz
Voltage Range	Up to 1000 V AC (phase-to-neutral), 2000 V AC (phase-to-phase)
Current Range	Up to 3000 A (with Clamp and Rogowski CTs)
Crest Factor	Voltage and Current (per phase)
Current Range	Up to 3000 A (with Clamp and Rogowski CTs)
Power Values	Active (W), Reactive (VAr), Apparent (VA), Distorting (VAD) – per phase & total
Power Factor	True PF, Displacement PF (cosφ), tanφ – per phase & total
Energy Values	Active (Wh), Reactive (VArh), Apparent (VAh), Distortion Energy (Dh)
Harmonics	Up to 51st order (V, I); THD per phase
Sequence Components	Positive, Negative, Zero (V & I)
DC Components	Voltage DC (Vdc), Current DC (Idc) – per phase
Power Quality Measurements
Harmonic Analysis	Table and bar graph up to the 51st order
Waveform Recording	6 channels (3 Voltage + 3 Current)
Voltage Dips & Swells	Configurable thresholds with RMS trend display
Inrush Current	Up to 10 minutes recording; waveform + RMS trend
Flicker Measurement	Short-term (Pst, 10 min) and long-term (Plt, 2 hr)
Power & Environmental
Battery	Li-Polymer 4.2V, 4000mAh
External Supply	Supported

Safety & Compliance
Voltage Clips	IEC/EN 61010-31, 1000V CAT IV
Clamp CTs	IEC/EN 61010-32, 600V CAT III
Flexible CTs	IEC/EN 61010-32, 1000V CAT III / 600V CAT IV
Enclosure Protection	IP50
Data Storage & Logging
Event Log Capacity	Up to 10,000 events
Snapshot Storage	Up to 1,000 captures
Recording Duration	2 weeks to several years (depending on configuration)
Inrush Recording	Up to 10 minutes
Min/Max Recording	Records extreme parameter values during sessions
Connectivity & Interface
Communication	Wi-Fi, USB
Display	Android tablet application (7–11 inch)

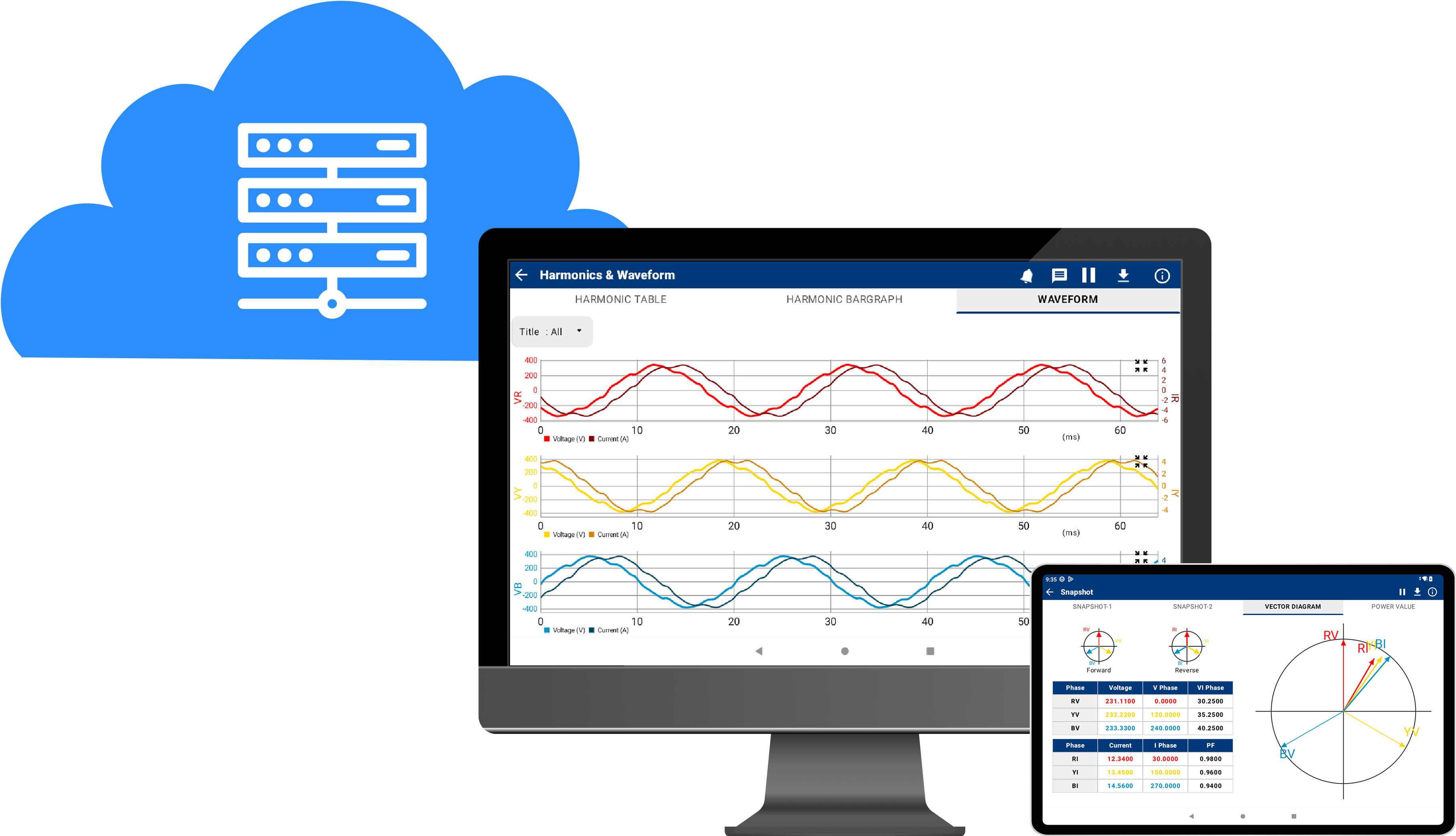

Cloud Platform	Web dashboard for visualization, trend analysis & reports
Data Export	Excel and PDF formats
User Interface	Route-based asset management, photo-tagging, light/dark mode
Mechanical
Dimensions	Compact portable form factor
Weight	Approx. 2.5 kg (including accessories)
Enclosure	Rugged field-ready design
Included Accessories

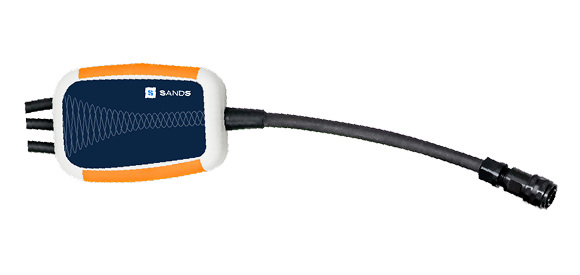

PQS-1001 Main Unit, Tablet App License, Clamp & Rogowski CTs (as selected), Flexible Current Input Module, Cloud Package Subscription
