Megawatt Large Display Indicator

Megawatt large display indicator

MEGAWATT LARGE DISPLAY INDICATOR

Large display indicator measures and displays the Megawatt from inputs like 63.5VAC, 4-20mA and data received from other equipment. It meets high accuracy of 0.1% to measure Megawatt. The large display is for clear visibility of the MegaWatt reading from a long distance. It is equipped with high bright red color 7segment displays. These are commonly used in Power plants, Substations, Manufacturing units and Field environments to provide direct Megawatt measurements.

FEATURES

  • High Bright 7 segment Display to view from long distance
  • It Measures Megawatt from 63.5V AC or 4-20mA current or signal received through Ethernet or RS485/RS232
  • Measures the Megawatt with an accuracy of 0.1%
  • Available in 50mm, 100mm,144mm& 300mm sizes
  • The input power supply can be customized
  • 10/100Mbps is the speed for Ethernet input
  • Power Over Ethernet option available
  • Wireless display option available with limited range
  • Rugged and Robust display
  • Isolated and protected Interfaces
  • Cabinets made up of MS/SS/Aluminium
  • Cabinet with powder coat finish
  • Wall / Panel / Tabletop mountable
  • Protection class from IP 20 / IP 55 available
  •  Front plate covered with Red color acrylic sheet

APPLICATIONS

  • Power Plants
  • Substations
  • Industries
  • Educational institutions

SPECIFICATIONS

Power Supply
Standard 100V to 270V AC, 1φ, (47Hz to 63Hz) or 100V to 370V DC
Custom 36V to 72V DC (48V), 18V to 36V DC (24V)
Power Consumption <10W
Display
Display Type 7 Segment Display
No of Digit 6 Digit
Format XXXX.XX
Display Size 50mm/100mm/144mm/300mm
Color Bright Red
Input Signal
Voltage Input* Voltage : 63.5V AC Value: Based on the customer-specified value Connector: Pluggable Terminal block Value: Based on the customer-specified value Connector: Pluggable Terminal block
Current Input* Current : 4-20mA or 0-20mA Value: Based on the customer-specified value Connector: Pluggable Terminal block Value: Based on the customer-specified value Connector: Pluggable Terminal block
Ethernet Input* Packet: Customer should specify Connector: RJ45 Speed: 10/100Mbps Connector: RJ45 Speed: 10/100Mbps
RS485/RS232 Input* Based on customer-specified protocol, Baudrate, data bit, stop bit & parity Connector : Pluggable Terminal / DB9 Connector : Pluggable Terminal / DB9
Wireless Input* Input: Wireless Antenna SANDS Wireless transmitter must be used
Environment
Operating Temp 0°to 50°C
Humidity 95% Non-Condensing
Mechanical
Enclosure Wall/Panel/Table Top Mountable
Dimension 50mm Display – 484mm x 74mm x 100mm 100mm Display – 750mm x 56mm x 170mm 144mm Display – 922mm x 56mm x 212mm 300mm Display – 1620mm x 56mm x 360mm 100mm Display – 750mm x 56mm x 170mm 144mm Display – 922mm x 56mm x 212mm 300mm Display – 1620mm x 56mm x 360mm
Protection Class IP20, IP55*
Note: * Optional

_______

YOU MAY BE INTERESTED IN

_______

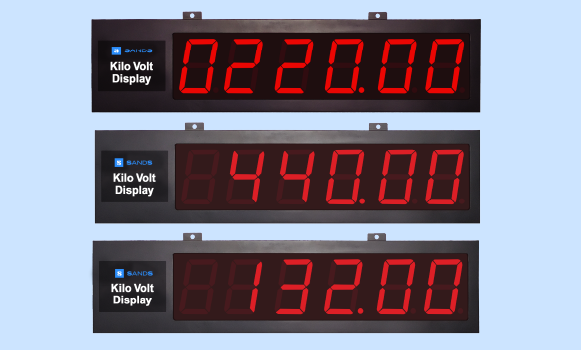

KiloVolt Large Display Indicator
