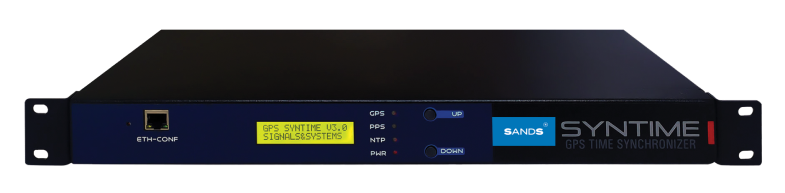

GPS Time Server (SYNTIME) is capable for the time synchronization requirements in various industries like power, process, IT, telecommunications etc. It generates wide range of time code and pulse signals via different output ports like 1PPS, IRIG-B TTL/AM, NTP, Serial (RS232/RS485), PTP, Fiber ports. GPS Time Server (SYNTIME) has redundant and non-redundant options for Power supply and GPS receiver functionality. SYNTIME has a 16 x 2 LCD display for viewing of time parameters, status of GPS receiver parameters, discrete LEDs provide at-a-glance status and health information. The GPS receiver has built-in RT on board backed up with battery to maintain time during power loss and instant recovery on power resumption.
SPECIFICATIONS
APPLICATIONS
RESOURCES
| GPS Receiver | |
|---|---|
| Timing Accuracy | < 15 ns with GPS Receiver |
| Positioning Accuracy | < 10m |
| Input Frequency | 1176.45MHz / 1575.42 / 1602MHz / L1 / L5 C/A code |
| Tracking | 22 parallel channels(navic / GPS / Glonass) |
| Acquisition time | Hot Start < 5 sec Warm Start < 35 sec Cold Start < 35 sec |
| Antenna | |
| Type | |
| Antenna Cable type | RG 6 / RG 11 |
| Operating Temperature | -40 to +85°C |
| Coverage | 360 Degree |
| Ingress Protection | IP67 |
| Weight | 150 g |
| Output | |
| PPS output | TTL into 250 Ω 500 ms Pulse Width |
| Frquency output | 10MHz |
| IRIG-B Modulated | IRIG-B IRIG B122 (Local time output) IEEE 1344 (Local time output) AFNOR NFS (Local time output) IEEE C37.118 (UTC time output) 1 KHz AM Signal 1 KHz AM Signal Modulation Ratio : 3:1 5.5 Vp-p, into 100Ω ±10% |
| IRIG-B TTL | IRIG-B IRIG B002 (Local time output) IEEE 1344 (Local time output) AFNOR NFS (Local time output) IEEE C37.118 (UTC time output) 5.5 Vp-p, into 100Ω ±10% TTL into 50Ω TTL into 50Ω |
| NTP(LAN Interface) | Protocol Support : NTP V3, SNTP Network Protocol : TCP, UDP, IPv4 Mode : Server Interface 1 x 10/100/1000 Mbps |
| Serial | Configurable Serial Frames (NMEA / NGTS / T-format) NMEA frames – GPRMC / GPZDA / GPGGA Output Status LED RS232 & RS485 Fix configuration : 9600-8-N-1 Protocol: IEEE 1588v2 Delay Mechanism – E2E / P2P PTP Modes 1 Step/2 Step mode Protocols IPv4, Telnet, SSH Interface 1 x 10/100 Mbps PRP will support NTP, SNTP and PTP |
| PTP |
Profile Supported: IEEE 1588-2008, IEEE C37.238-2011, C37.238-2017, IEC 61850-9-3 : Delay Mechanism – E2E / P2P : PTP Modes 1 Step/2 Step mode Interface 1 x 10/100 Mbps |
| PRP | PRP will support NTP, SNTP and PTP Signal Type: IRIG-B TTL |
| Optical Ports For TTL Signals | Transmission : Simple Fiber Size : 62.5/125 μm Wavelength : 820 nm Distance : 1500 meters |
| Optical Ports For Ethernet | Ethernet(NTP/PTP) Transmission : Simplex Fiber Size : 62.5/125 μm Wavelength : 1310/1550 meters Range : 2km for Multimode and 20-120km for Singlemode |
| Pulse outputs | 4 x PFC(250 V/0.2 A) (PPS, PP5S, PPM, PPQH, PPHH, PPH, PPD) |
| Description | |
| ETH -CONF | IPv4, NTP, SNMP, Webserver, SSH. Network Interface :RJ45, Auto-negotiation |
| Standard GPS Antenna cable length | |
| 20 meters | RG6 |
| 50 meters | RG6 |
| 100 meters | RG11 |
| Interface and Configuration | |
|---|---|
| Display | Local / UTC Time and Date Day of the week Position latitude, longitude |
| Displayed data | Status of the GPS receiver |
| Status LEDs | Power, 1PPS, GPS Locked & NTP |
| Configuration | Web server HTTP |
| Network Protocols | IPv4, TCP NTP v2[RFC 1119], v3[RFC 1305] and v4[RFC 5905] with Unicast, Broadcast / Multicast Modes SNMP v1[RFC 1157], v2[RFC 1901-1908] and v3[RFC 3411-3418] with Enterprise MIB file SNMP v1, v2 and v3 compatible Traps with two configurable SNMP Trap Managers SYSLOG for internal and remote Alarm logging SSH v1, v2, Telnet for remote configuration PTPv2 - IEEE 1588 Grandmaster Clock (Multi-Profile support, incl. IEEE 1588-2008, IEEE C37.238-2011, C37.238-2017, IEC 61850-9-3) Webserver through HTTP, Browser based Configuration & monitoring |
| Network Security Features | Configurable MD5 based encrypted password user access to SSH, Telnet and
Webserver access NTP v3,v4 MD5 Authentication with Symmetric and Autokey Management SNMP v3 – SHA/MD5 Authentication SNMP v3 with no-auth / auth / priv security feature |
| Power Supply | |
| Standard | 90 – 260 V AC / 90- 370 V DC, 35W |
| Option-1 | 18 – 36 V DC, 30W |
| Option-2 | 36 – 75 V DC, 30W |
| Mechanical | |
| Mounting | 1U, 19” Rack Mount |
| Dimensions(mm) | 44.5(H) x 484(W) x 220(D) |
| Ingress protection | IP20 enclosure |
| Environmental | |
| Operating temperature | 0 to +55°C |
| Storage temperature | -20 to +80°C |
| Humidity | 20-95 % RH Non Condensing |
| User Selectable Modules for Slot-1 to Slot -3 | |
| M1 | 10/100 Mbps, NTP, RJ45 X 2 |
| M2A | 10/100 Mbps, NTP, RJ45 X 1 + FO X 1 (Single Mode-ST) |
| M2B | 10/100 Mbps, NTP, RJ45 X 1 + FO X 1 (Multi Mode-ST) |
| M3A | 10/100 Mbps, NTP with SNMP, RJ45 X 2 |
| M3B | 10/100 Mbps, NTP with SNMP + PRP, RJ45 X 1 |
| M3C | 10/100 Mbps, PTP with SNMP, RJ45 X 2 |
| M3D | 10/100 Mbps, PTP with SNMP + PRP, RJ45 X 1 |
| M4A | 10/100 Mbps, NTP with SNMP, RJ45 X 1, FO X 1, (Single Mode-ST) |
| M4B | 10/100 Mbps, NTP with SNMP, RJ45 X 1, FO X 1, (Multi Mode-ST) |
| M5A | 10/100 Mbps, PTP with SNMP, RJ45 X 1, FO X 1, (Single Mode-ST) |
| M5B | 10/100 Mbps, PTP with SNMP, RJ45 X1, FO X 1, (Multi Mode-ST) |
| M6A | IRIG-B, AM X 2 |
| M6B | IRIG-B, AM X 1 + PWM X 1 |
| M6C | IRIG-B, PWM X 2 |
| M7A | Pulse FO, Multi-mode IRIG-B PWM X 2 |
| M7B | Pulse FO, Multi-mode IRIG-B PWM X 1 + PPS X 1 |
| M7C | Pulse FO, Multi-mode IRIG-B PPS X 2 |
| M8A | Pulse FO, Single mode IRIG-B PWM X 1 |
| M8B | Pulse FO, Single mode IRIG-B PPS X 1 |
| M9 | RS485(IRIG-B PWM) X2 |
| M10 | 10/100 Mbps NTP, RJ45 X 1, 10/100/1000 Mbps, NTP, RJ45 X 1 |
