GPS NTP TIME SERVER

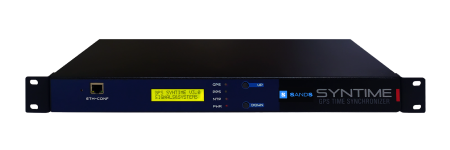

GPS Time Server (SYNTIME) is capable for the time synchronization requirements in various industries like power, process, IT, telecommunications etc. It generates wide range of time code and pulse signals via different output ports like 1PPS, IRIG-B TTL/AM, NTP, Serial (RS232/RS485), PTP, Fiber ports. SYNTIME has redundant and non-redundant options for Power supply and GPS receiver functionality

• 22 Satellite parallel tracking
• GPS based time Server available in Redundant & Non-Redundant Options
• NTPv2/v3 and NTPv4 with MD5 authentication & symmetric and autokey management
• IPv4, SNMP, SSH, SCP, HTTP, SYSLOG,FTP, Networking protocols
• Remote Alarm notifications via SNMP, SYSLOG
• Universal Time-zone and DST Settings
• Supports synchronization of IEC61850 compliant devices via NTP/SNTP protocol

GPS Master Clock System is a 3U Card rack type, 19” Rack mountable Redundant GPS Time Server which synchronizes and maintains the timing and frequency requirement of power and process industry equipment. It provides redundancy for Power and GPS receiver to increase the reliability and offers protection against the time synchronization failure.

• Provides nanosecond accuracy when external time references are not available
• Synchronization of NTP and SNTP compatible clients
• Web-based status and configuration interface
• Storage facility to store the system log file

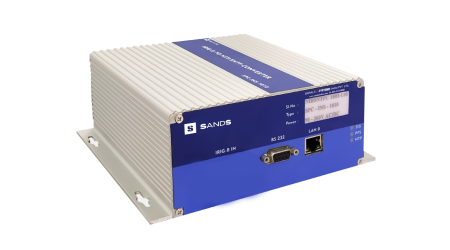

GPS NTP SERVER – GPS-DRM-1010 is a compact DIN rail mountable unit which synchronizes and maintains the timing and frequency requirement

• Provides nanosecond accuracy.
• Synchronization of NTP and SNTP compatible clients
• Compact Din Mountable System
• Web-based status and configuration interface.
• Storage facility to store the system log file.

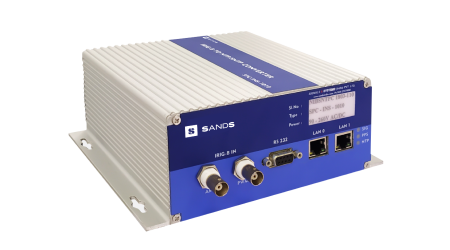

IRIG B TO NTP/SNTP CONVERTER  is a compact DIN rail mountable protocol converter unit that synchronizes and maintains the timing and frequency requirement of power and process industry equipment using IRIG-B signal obtained from GPS receiver.

• Synchronization of NTP and SNTP compatible clients.
• IRIG-B to NTP/SNTP converters is often required in integrating older generation of GPS Clocks to new generation of DCS systems.
• Web-based status and configuration interface.
Storage facility to store the system log file.

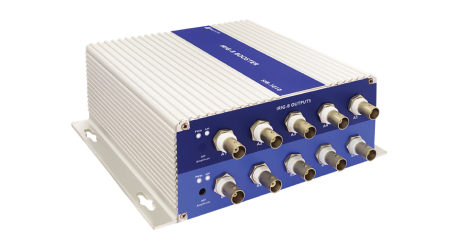

IRIG B Booster – SIB-1010 is used to boost the IRIG-B AM and PWM/TTL signal which is received from the GPS unit. It provides easy and affordable connectivity to substation equipment and power generation and distribution equipment.

• Plug-N-Play unit, you can expand your IRIG B connections to multiple devices instantly.
• Boosts the IRIG-B AM & PWM signal received from GPS.
• Either IRIG-B AM or PWM or Both AM & PWM can be boosted

SLC-1010 series converter is used to convert the IRIG-B TTL to IRIG-B RS485 signal. It provides easy and affordable connectivity to substation equipment and power generation and distribution equipment. It converts the IRIG-B TTL input format like 002, 004, 006 & IEEE1344 and IEEE C37.118 to RS485 output with the same format. With these Plug-N-Play units, you can expand your IRIG-B TTL signal to a long distance. The converter supports 2-wire RS-485.

• Converts the IRIG-B TTL to IRIG-B RS485 signal
• Industrial grade enclosed in a rugged, rustless housing
• RS485 signal can be transmitted up to 1200m

The large display is equipped with an accurate quartz clock which synchronizes with Time signals like NTP, IRIG-B and RS485/RS232. The display is wall / panel / table top mountable. The cabinet is made up of Mild Steel or Aluminium or Stainless steel as per customer requirements. The Display can show either UTC time or local time.

• Accepts Time Signals like NTP, IRIG-B and RS485/RS232
• Available in 50mm, 100mm, 144mm & 300mm sizes
• Power over Ethernet (PoE) option available
• Wireless display option available

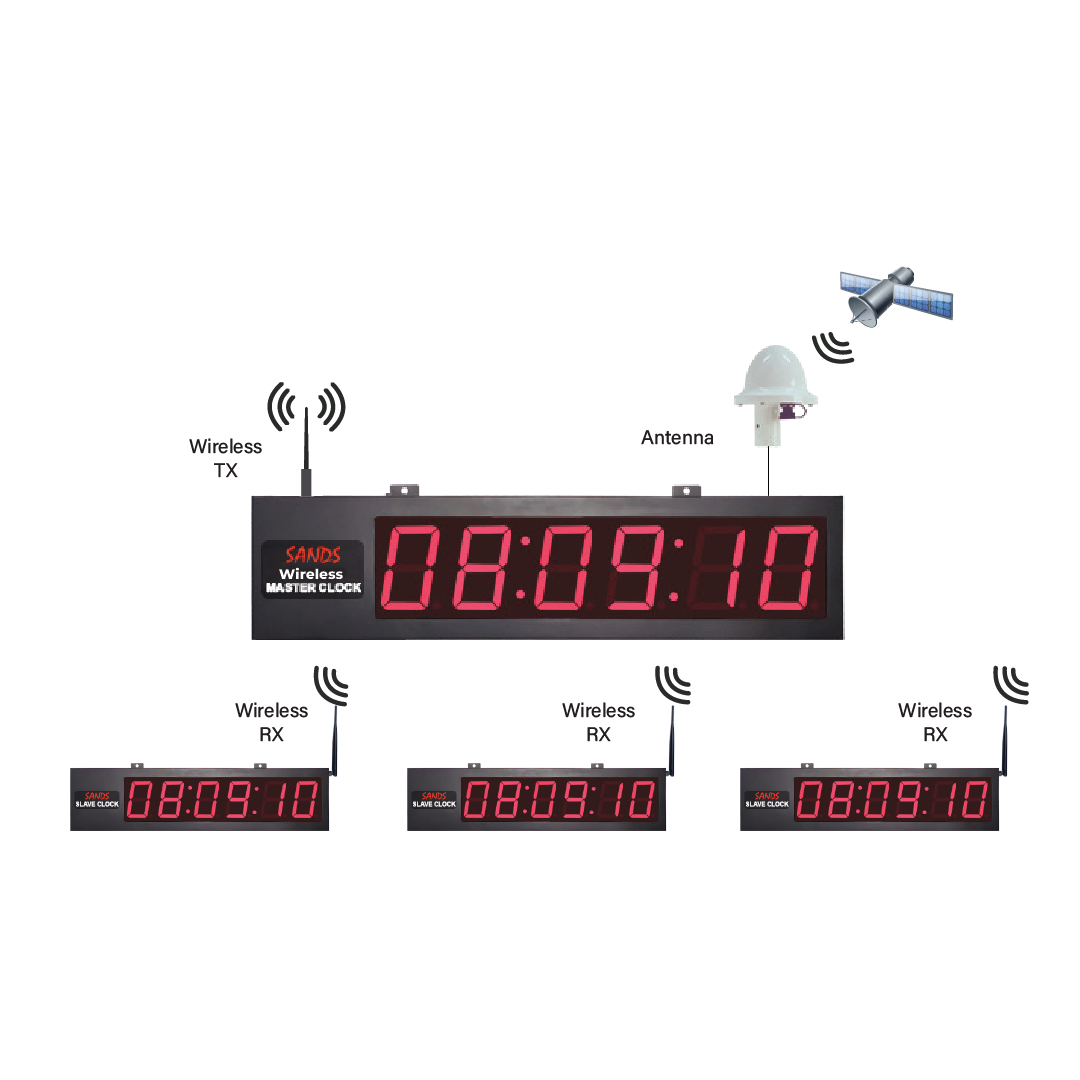

GPS Clock offers an easy, cost effective solution for accurate, synchronized time displays without expensive, disruptive installation procedures. Because there are no wiring requirements, installation times are drastically reduced.

• The display can be wall / panel / table top mountable
• It can used as wireless clock to synchronize many wireless slave clocks in and around the buildings

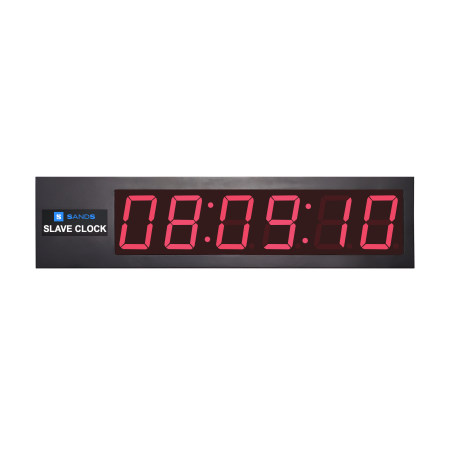

GPS Standalone Clock offers an easy, cost effective solution for accurate, synchronized time displays without expensive, disruptive installation procedures. Because there are no wiring requirements, installation times are drastically reduced.

• The display can be wall / panel / table top mountable
• It can used as wired clock to synchronize many slave clocks in and around the buildings
